Description
FEATURE
Gigabit access, uplink SFP fiber port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit RJ45 port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
◇ Comply with IEEE802.3 af/at PoE power supply standard, automatically identify PoE equipment for power supply.
◇ Support PoE network management function, allowing users to configure PoE on/off and view port power status through the network management system.
◇ 8*10/100/1000Base-T RJ45 ports support PoE power to meet the power supply needs of security monitoring, conference call systems, wireless coverage, and other scenarios.
Strong business processing capability
◇ Support RSTP for ring networks, eliminating Layer 2 loops and providing link redundancy.
◇ Support IEEE 802.1Q VLANs, allowing users to flexibly partition VLANs according to their requirements.
◇ Support QoS, with three priority modes-port-based, 802.1P-based, and DSCP-based-and four queue scheduling algorithms: SP, WRR, and WFQ.
◇ Support both static and dynamic aggregation, effectively increasing link bandwidth, achieving load balancing and link redundancy, and enhancing link reliability.
◇ Support ACL, enabling packet filtering through the configuration of matching rules and processing actions, and providing flexible security access control policies.
◇ Support IGMP V1/V2 multicast protocols and IGMP Snooping, meeting the access requirements for high-definition video surveillance and video conferencing across multiple terminals.
Security
◇ Support port isolation and port broadcast storm suppression.
◇ Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Stable and reliable
◇ CE, FCC, RoHS.

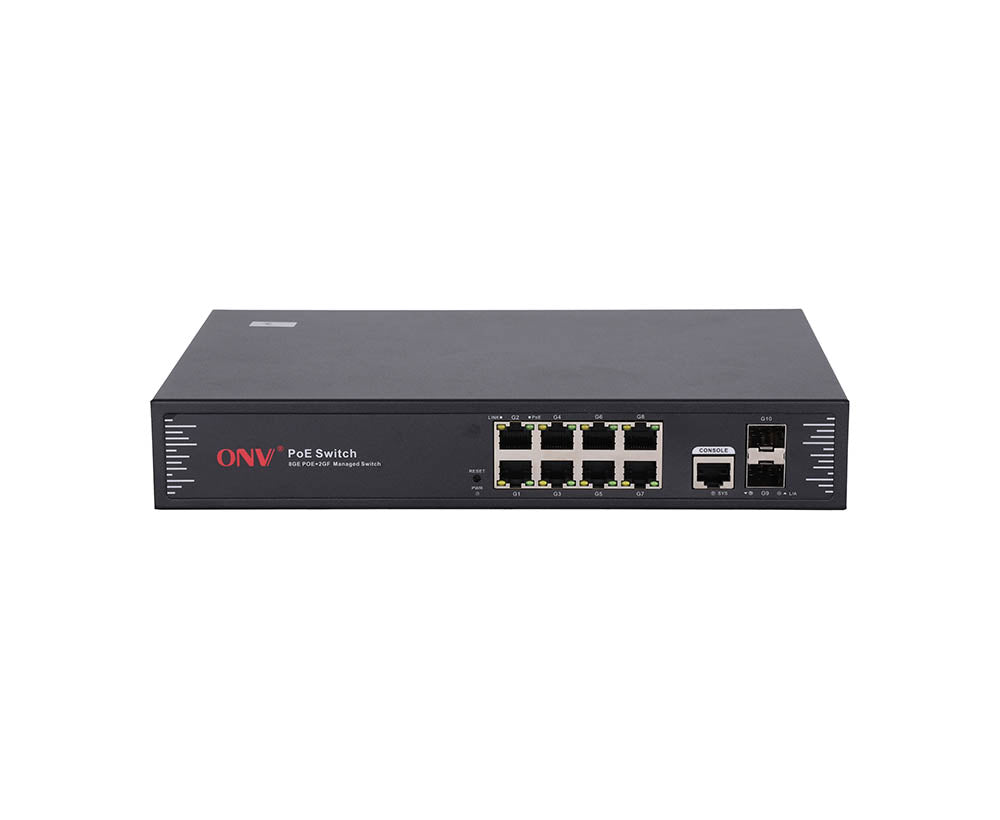

◇ The user-friendly panel can show the device status through the LED indicators of PWR, PoE, and Link.
◇ Using a self-developed power supply with a high-redundancy design provides long-term and stable PoE power output.
◇ Low power consumption, with a fan, galvanized steel metal housing, and excellent heat dissipation to ensure the stable operation of the switch.
Easy O&M management
◇ Support CPU monitoring, memory monitoring, and Ping detection.
◇ Port traffic statistics to facilitate network optimisation and upgrades.
◇ Support LLDP, enabling network management systems to query and assess link status.
◇ Support a variety of management and maintenance methods, including web-based management, CLI (Console, Telnet), SNMP (V1/V2/V3), and Telnet.
