Description

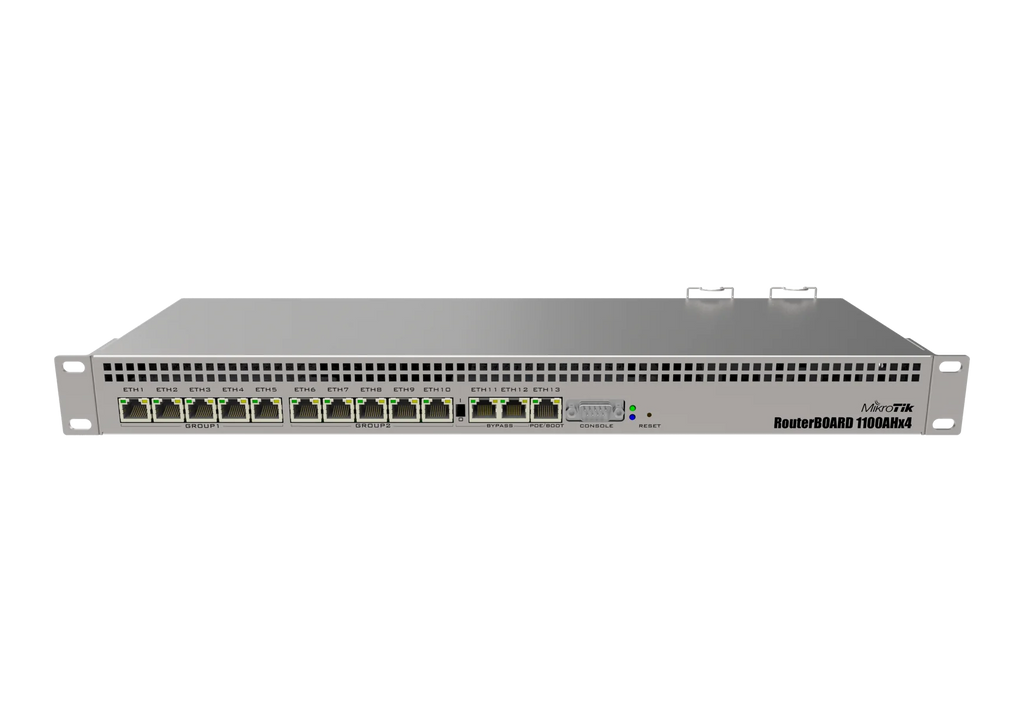

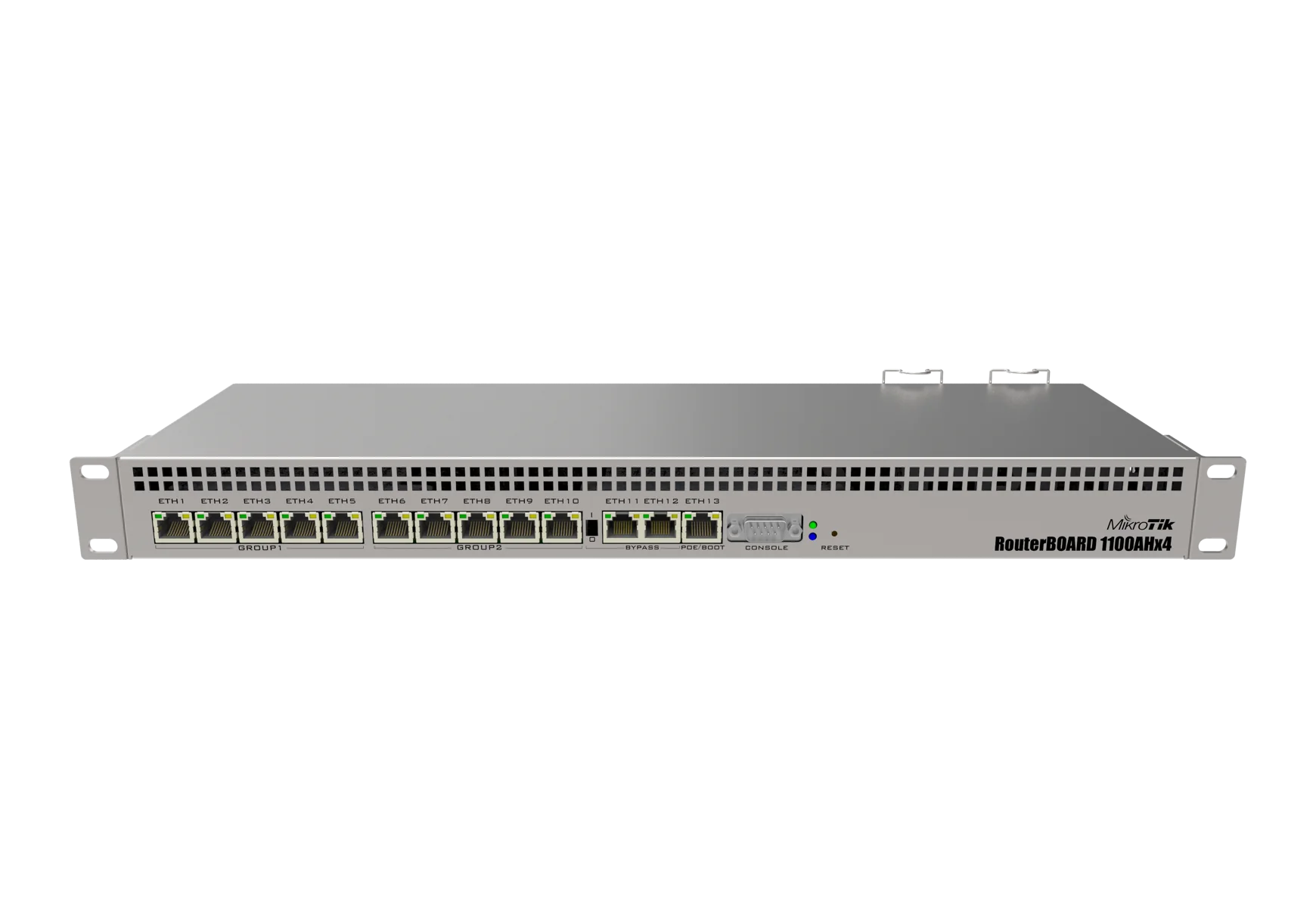

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).
Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
Specifications
- Product codeRB1100x4
- Quad-core CPU
- PoE
- Architecture : ARM 32bit
- CPU : AL21400
- CPU core count : 4
- CPU nominal frequency : 1.4 GHz
- CPU Threads count : 4
- Switch chip model : RTL8367
- Dimensions : 443 x 148 x 44 mm
- Router : OS license6
- Operating SystemRouter : OS
- Size of RAM : 1 GB
- Storage size : 128 MB
- Storage type : NAND
- MTBF : Approximately 200'000 hours at 25C
- Tested ambient temperature : -40°C to 70°C
