The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

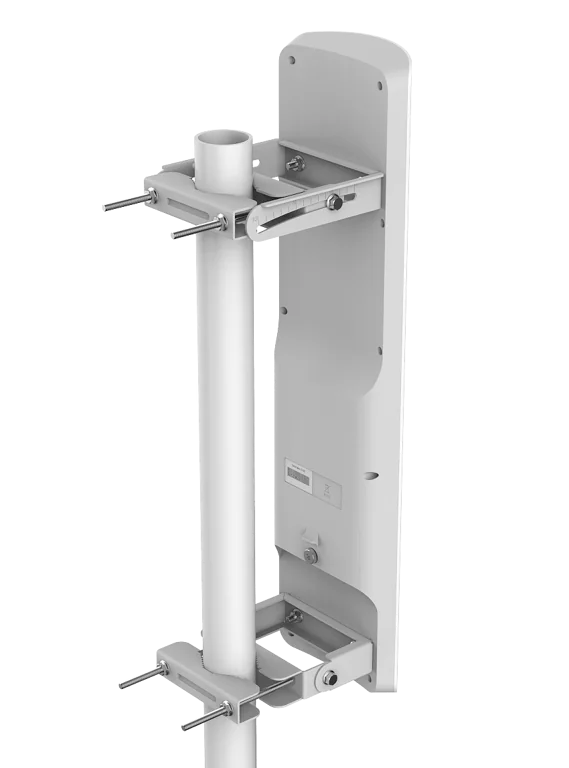

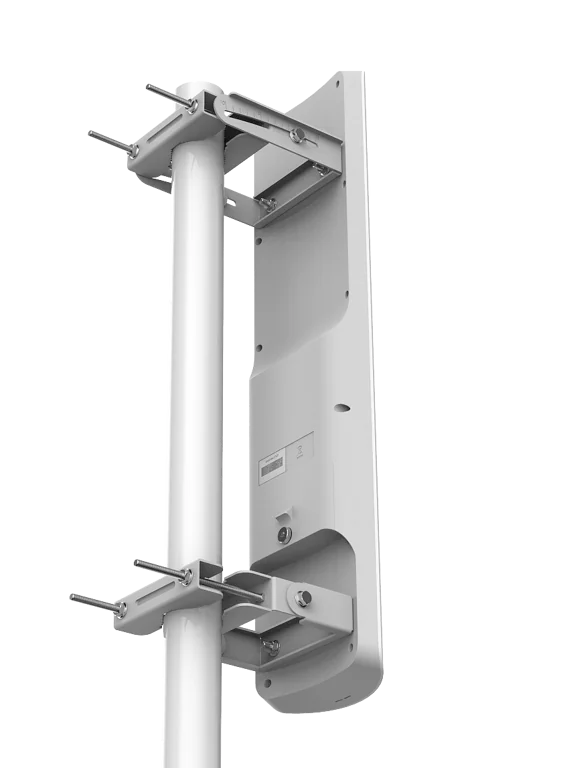

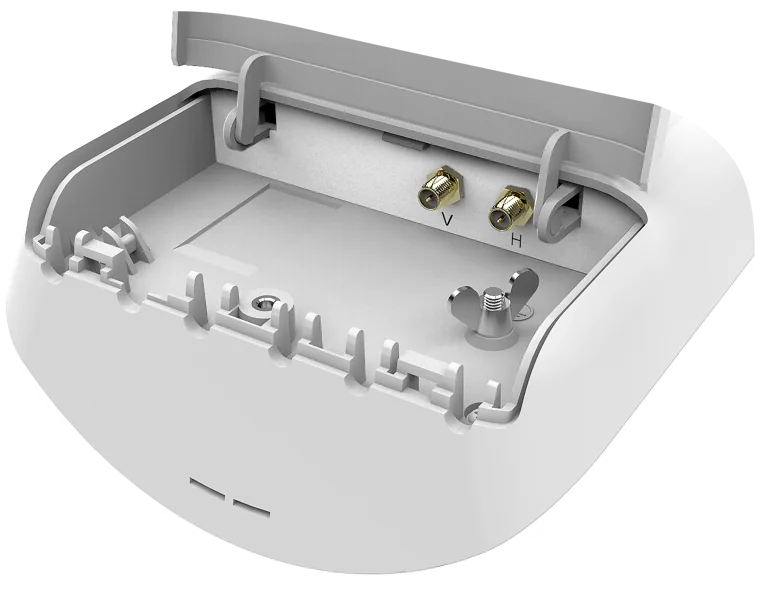

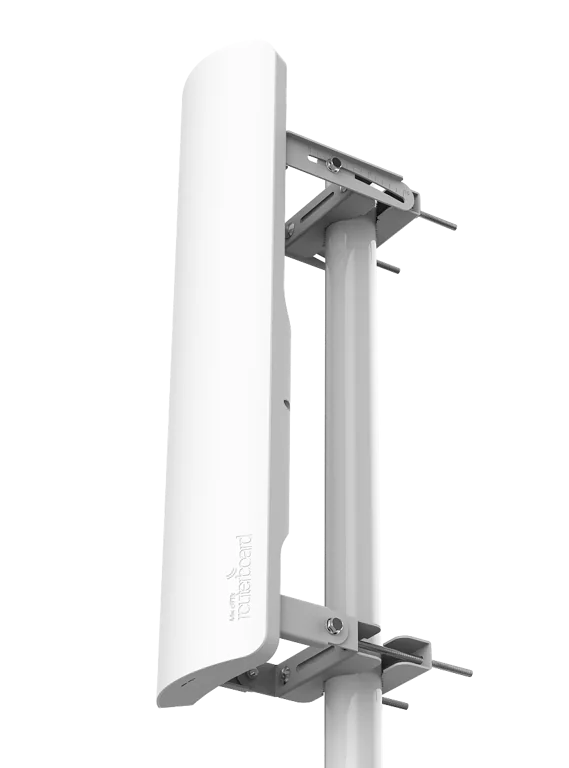

The mANT is a dual-polarization 19dBi 120 degree beamwidth antenna with two RP-SMA connectors. It comes with metallic U bolt type mounts.
Specifications
- Product code : MTAS-5G-19D120
- Beamwidth : 120 deg (azimuth) 5 deg (elevation)
- Connector : two RP-SMA
- Cross Polarization : >30 dB
- Diameter x Depth : 152 x 598 x 78 mm
- Frequency Range : 5.17 - 5.825 GHz
- Front-to-Back Ratio : >30 dB
- Polarization : Vertical and horizontal
- Port to Port Isolation : >40 dB min
- VSWR : 1.43 typ, 1.8 max
- Weight : 1270 g
