The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

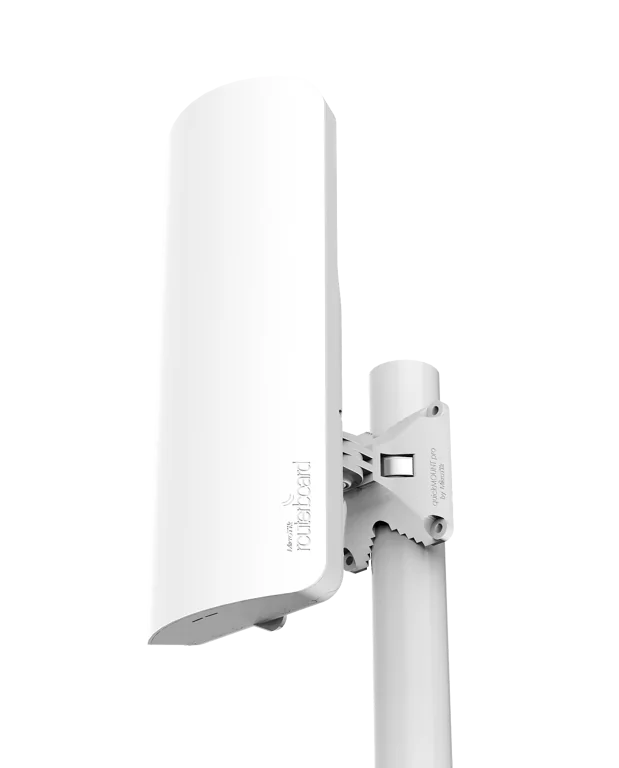

The mANT is a dual-polarization 15dBi 120 degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.
Specifications
- Product code : MTAS-5G-15D120
- Beamwidth: 120 deg (azimuth) 10 deg (elevation)

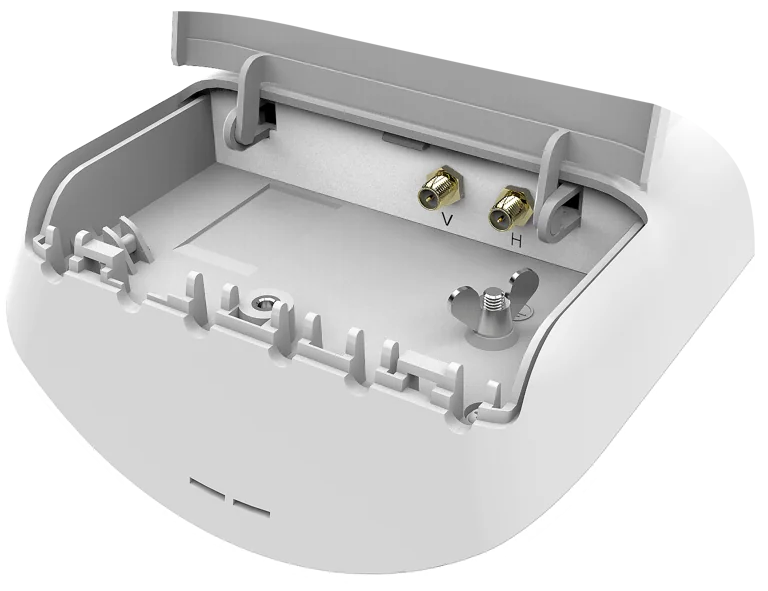

- Connector : two RP-SMA
- Cross Polarization: >30 dB
- Diameter x Depth : 140 x 348 x 82 mm
- Frequency Range: 5.17 - 5.825 GHz
- Front-to-Back Ratio: >30 dB
- Polarization : Vertical and horizontal
- Port to Port Isolation : >40 dB min
- VSWR : 1.43 typ, 1.8 max
- Weight : 734 g
